As a creative outlet, I keep a visual journal consisting of collages the reader can somehow interact with.

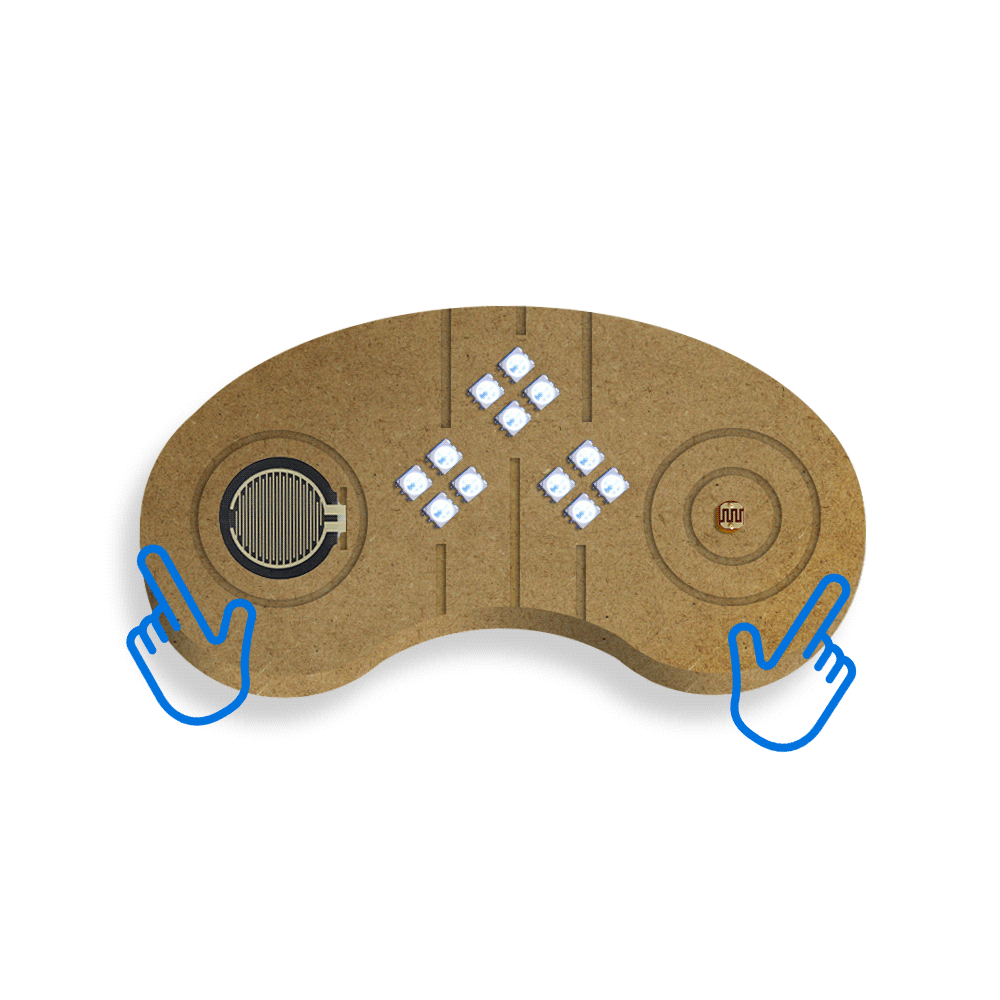

For this project I want to play and enhance this idea of interactivity by creating a joystick-like device so the user can play with the illustrations just as they would if they had the journal in their hands
![](https://static.wixstatic.com/media/81939d_2ebebc45ab8444f3b236d1ad063bcf70~mv2.jpg/v1/fill/w_594,h_768,al_c,q_85,enc_auto/81939d_2ebebc45ab8444f3b236d1ad063bcf70~mv2.jpg)
This is an on-going project, currently in standby due to the Covid-19 lockdowns and the incapability to work at the Fab Lab. However, I was able to put together a working prototype from home that I will keep developing once the workshop is up and running again.

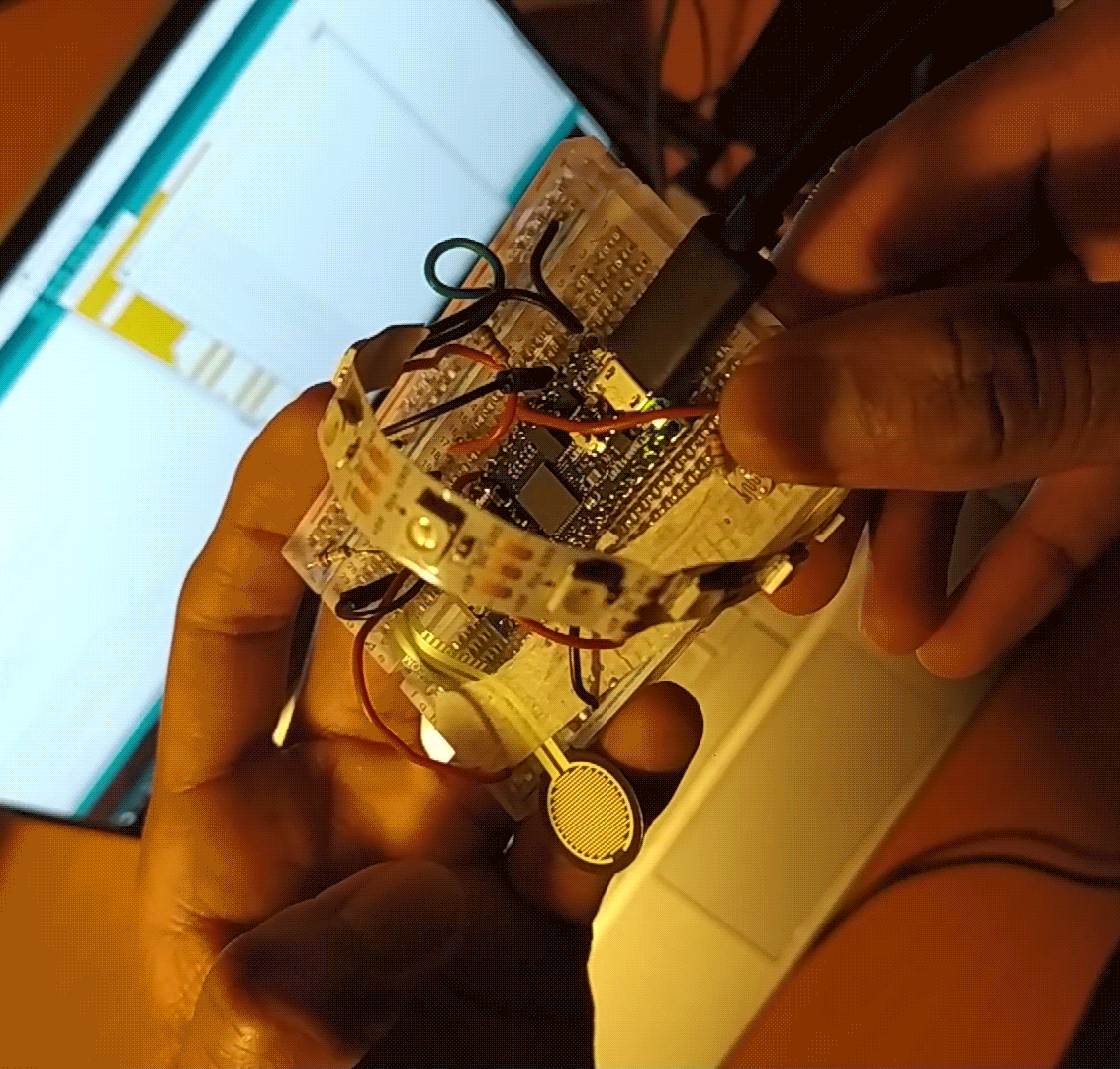

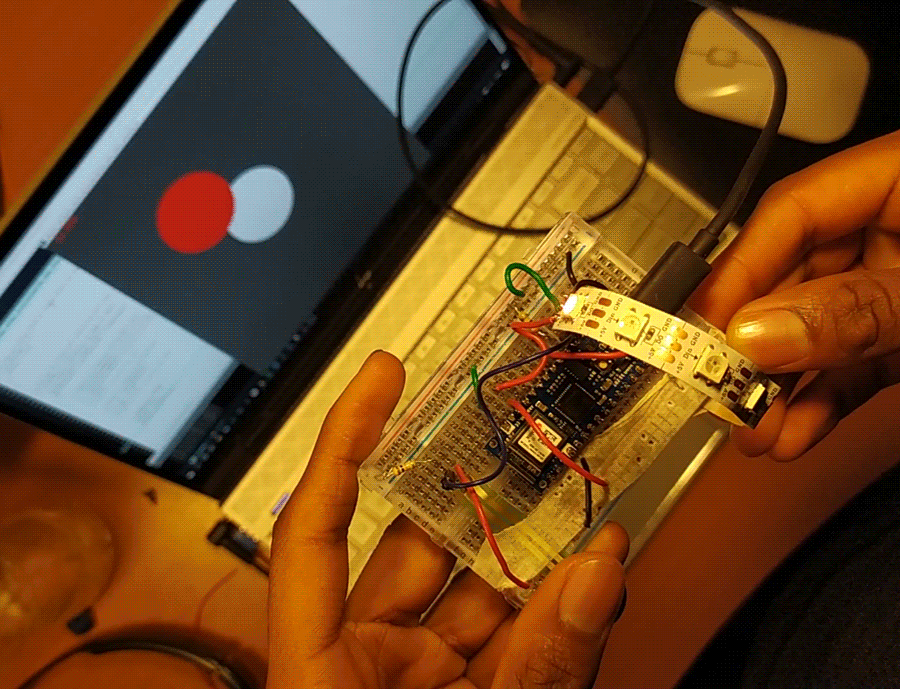

I programmed the controller to read the accelerometer data on an Arduino IoT; a force sensor and a light dependent resistor function as buttons. Several Neopixels LED lights and a vibrator motor are the outputs in the controller.
I wrote a program in Processing to read the data from the device and by mapping the readings from the sensors, the animations are triggered.
![](https://static.wixstatic.com/media/81939d_126bc378468b48b9a8a69e96aad8e28f~mv2.gif)
Then I took one of the collages and created a series of animations frame by frame on Photophop. Later on Processing I mapped the animations to the different readings coming from the prototype' sensors.
Original Collage Animated on Proccessing and the Controller
Then I decided to have fun with it and wrote a interactive little game to play with the joystick!
![](https://static.wixstatic.com/media/81939d_f65e2f76bad84ac59d4dd4d57b9615b5~mv2.gif)
